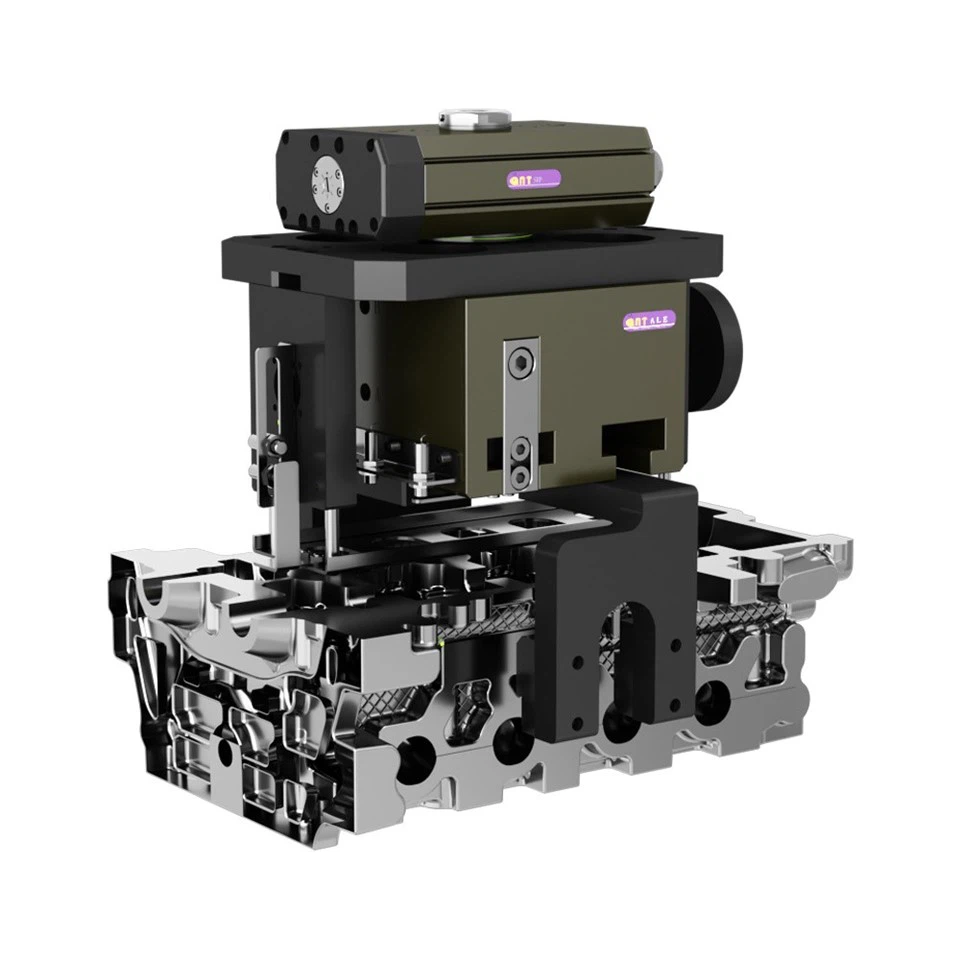

ALE Long-Stroke Parallel Gripper: Heavy Payload Reach for Demanding Applications
Engineered for oversized and irregular workpieces requiring exceptional reach and industrial clamping force
Industrial-Grade Performance Architecture
▌ Extended Reach Capability
100mm per-jaw stroke (200mm total opening) - 3× industry standard
Supports 250mm custom fingers for deep-cavity access
Maintains ±0.05mm parallelism at full extension
▌Force-Optimized Drive System
|
Component |
Engineering Advantage |
|
Power Cylinder |
Oversized circular piston (40% larger area) |
|
Force Output |
3,096N clamping at 8bar (315kgf) |
|
Guide System |

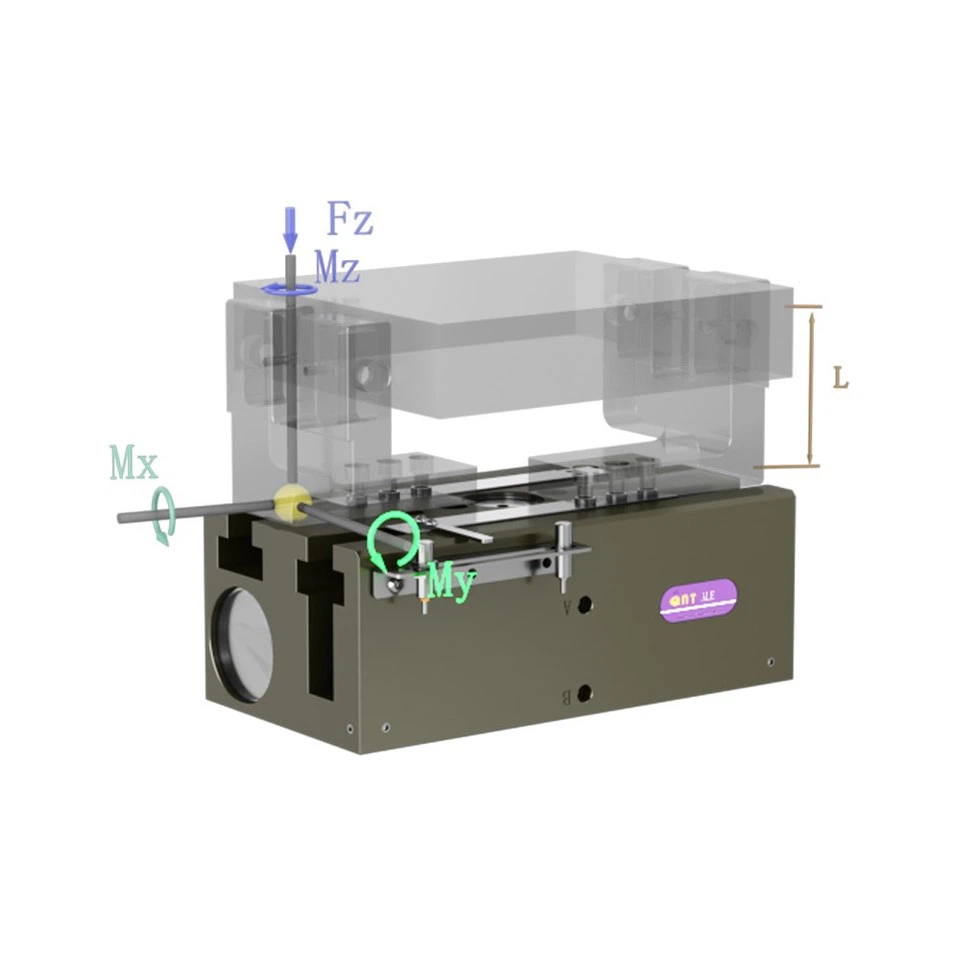

Hardened T-rails withstand 15kg payload moments |
|
High-Temp Option |
-R version operates at 200°C |
Technical Specifications
► Stroke Options: 50mm / 100mm per jaw
► Clamping Force: 816N (50mm) / 3,096N (100mm)
► Payload Capacity: 15kg
► Max Finger Length: 250mm (3.5kg/finger)
► Repeat Accuracy: ±0.05mm
► IP Rating: IP46 (dust/liquid splash resistant)
► Sensor Ready: Inductive proximity detection
Critical Application Scenarios
Automotive Manufacturing
Handling exhaust systems (2.5m assemblies)
Transferring door panels between paint stations
Welding fixture loading for frame jigs
Aerospace Composite Layup
Manipulating wing spar tools (8m length)
Autoclave loading of carbon fiber molds
Drilling fixture repositioning
Heavy Equipment Production
Excavator arm section handling
Wind turbine blade root grasping
Ship propeller positioning
Glass & Ceramic Processing
Kiln loading of architectural panels
Transferring tempered glass sheets
Sanitaryware mold manipulation
Competitive Advantages
Reach Capacity: 200mm total opening clears obstacles other grippers can't
Thermal Resilience: -R version withstands paint cure ovens/autoclaves
Payload Stability: 15kg capacity at full extension
Structural Integrity: Reinforced T-rails prevent deflection with long fingers
Maintenance Reduction: Sealed guides withstand abrasive environments
Conclusion
The ALE redefines large-object automation with its industry-leading 100mm per-jaw stroke, delivering exceptional reach (250mm fingers) without sacrificing industrial clamping force (3,096N). By combining oversize piston mechanics with heavy-duty T-rail guidance, it solves critical material handling challenges in automotive, aerospace, and heavy industries – particularly in high-temperature environments up to 200°C. Where conventional grippers require multiple handling stages for oversized components, the ALE enables single-step manipulation with IP46 environmental protection. This is not merely a gripper; it's your engineered solution for conquering the most demanding large-format handling applications.
