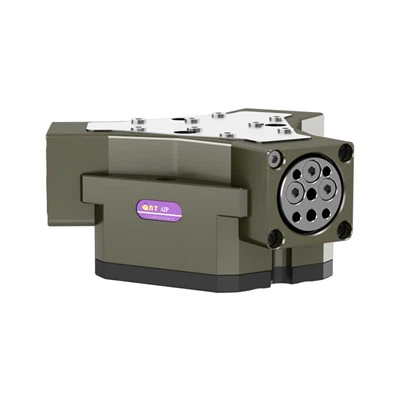

AZN Triple-Jaw Centering Gripper: Precision Powerhouse for Heavy-Duty Automation
Engineered for mission-critical applications demanding absolute concentricity under extreme conditions
Revolutionary Wedge-Driven Centering Technology
▌ Force-Optimized Transmission
○ Vertical piston drives triple 45° hardened wedges → 9,800N radial clamping force (98kg payload)
○ Spring-ejector system ensures positive part release (eliminates sticky workpieces)
○ Adjustable sensor blocks enable real-time position monitoring (magnetic/inductive)
▌Industrial-Proof Construction
|
Feature |
Engineering Advantage |
|
Hardcoat Aluminum Body |
Survives 15G shock loads |
|
Triple T-Slot Guides |
Maintain ±0.01mm runout at 300mm finger length |
|
High-Temp (-R) Version |
200°C forging/paint oven capability |
|
IP66 Sealed Variant |
Withstands 1000psi washdown |
► Radial Clamping Force: 2,200-9,800N
► Per-Jaw Stroke: 4-45mm (135mm ∅ adjustment)
► Ejector Spring Force: 180N (min)
► Max Finger Length: 300mm (13.5kg/finger)
► Repeat Accuracy: ±0.01mm
► Temperature Range: Standard: 5-80°C / -R: 5-200°C
► IP Ratings: IP45 (standard) / IP66 (sealed)
Critical Heavy-Industry Applications
Automotive Powertrain
Turbocharger turbine housing machining (±0.015mm TIR)
Transmission gear blank heat treatment handling
Crankshaft grinding operation fixturing
Aerospace Manufacturing
Jet engine compressor disk balancing
Landing gear cylinder honing operations
Satellite thruster nozzle welding
Energy Sector
Wind turbine bearing race installation
Drill head stabilizer machining
Nuclear reactor control rod handling (IP66 variant)
Metal Forming
Forging die changeover in 200°C environments
Extrusion press mandrel centering
Hot-stamped bumper calibration
Competitive Advantages
Zero Workpiece Deformation: Symmetric force distribution prevents ovalization
Sticky Material Solution: Spring ejector clears oil-soaked/coated parts
Thermal Resilience: -R version operates where competitors melt
Setup Flexibility: Sensor blocks adapt to 150+ workpiece profiles
Maintenance Immunity: Wedge mechanism withstands abrasive debris
Conclusion
The AZN redefines heavy-part centering with its triple-wedge transmission system, delivering unmatched radial clamping force (9,800N) while maintaining microscopic accuracy (±0.01mm) in extreme environments (200°C/IP66). Its integrated spring ejection solves chronic workpiece sticking in oil-cooled machining, while adjustable sensing enables rapid changeovers. For automotive, aerospace, and energy sectors requiring absolute concentricity under punishing conditions, the AZN eliminates hydraulic fixturing while providing sensor-driven process control. This is not just a gripper - it's your strategic advantage for conquering the most demanding precision manufacturing challenges.
